GN Separation recently completed the manufacturing and shipment of a sludge dewatering centrifuge package to an overseas environmental protection company. This project demonstrates GN’s capability to deliver reliable and efficient sludge treatment solutions for international wastewater treatment applications.
The package is designed to support the client’s requirements for municipal and industrial sludge dewatering, ensuring stable performance, reduced sludge volume, and compliance with environmental standards.
Overview of GN Dewatering Decanter Centrifuge (T Series)

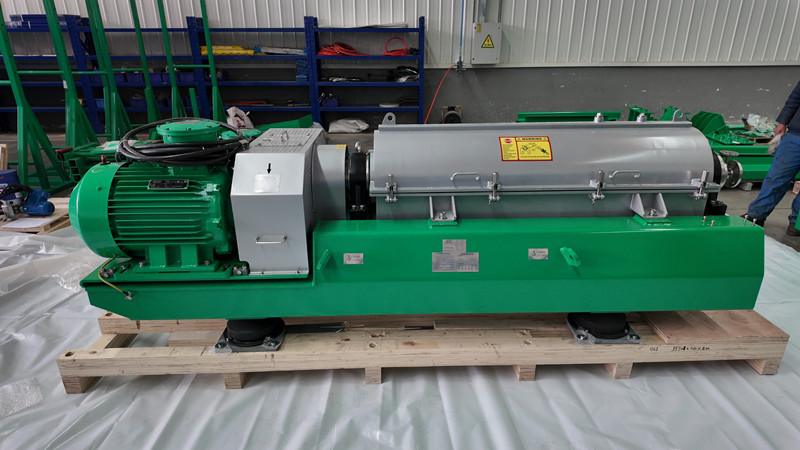

The core equipment in this project is the GN Dewatering Decanter Centrifuge (T Series).
GN dewatering decanter centrifuge is a T series decanter centrifuge with a beach angle of 8.5 degrees, specifically designed for sludge dewatering and thickening applications.
Thanks to its optimized structural design, the T series centrifuge is widely used in:
-
Municipal wastewater treatment
-
Industrial wastewater treatment
-
Environmental protection projects
Working Principle and Application
The GN T series decanter centrifuge is ideal for materials with:
-
Large particle size
-
High density difference between solid and liquid
-
Low viscosity
-
High concentration
For sludge containing fine particles, flocculants are typically added to aggregate fine solids into larger particles before entering the centrifuge. This significantly improves separation efficiency and dewatering performance.
Typical Applications
GN dewatering decanter centrifuge is suitable for a wide range of industries and materials, including:
-
Municipal sewage and river sludge
-
Food and organic wastewater
-
Oily sludge and oil sand separation
-
Drilling mud and construction slurry
-
Mining and mineral processing wastewater
-
Chemical and pharmaceutical wastewater
-
Printing and dyeing wastewater
-
Aquaculture wastewater
It is also widely used for solid-liquid separation of materials such as:
-
Calcium carbonate, bentonite, silica
-
Titanium dioxide, barium sulfate
-
Kaolin, aluminum hydroxide
-
Various industrial slurries and fine particles
Key Technical Features
1. Optimized 8.5° Beach Angle
The 8.5-degree beach angle extends the dewatering zone, allowing:
-
Longer drying time
-
Higher solid dryness
-
Improved dewatering efficiency
2. High-Quality Materials and Manufacturing
-
Bowl and shaft caps made of duplex stainless steel (SUS2205 / SUS2304)
-
Manufactured by centrifugal casting and forging, ensuring:
-
Higher strength
-
Better corrosion resistance
-
Longer service life
-
3. Advanced Screw Design
-
CNC-formed screw blades for improved conveying efficiency
-
Optional variable pitch design for enhanced compression
-
Replaceable wear-resistant alloy protection plates
4. Energy-Efficient and Stable Operation
-
Deep liquid pool design reduces energy loss
-
Optimized flow structure minimizes turbulence
-
Three-stage dynamic balancing ensures smooth high-speed operation
5. Wear Protection and Durability
-
Tungsten carbide sleeves at solid discharge ports
-
Anti-abrasion design for extended equipment lifespan
-
Suitable for abrasive and high-solid-content materials
6. Intelligent Control System
-
Equipped with PLC, HMI, and VFD
-
Real-time monitoring of:
-
Speed
-
Temperature
-
Vibration
-
Torque
-
Motor current
-
-
Automatic protection for:
-
Overload
-
Blockage
-
Abnormal operation
-
7. Flexible and User-Friendly Design
-
Adjustable weir plates for liquid pool depth control
-
Easy maintenance with hydraulic bearing disassembly
-
Compact structure with dual motors on one end
Model Range and Capacity
GN T Series decanter centrifuge is available in multiple models, including:
-
GNLW224GT
-
GNLW364GT
-
GNLW454GT
-
GNLW554GT
-
GNLW654GT
-
GNLW764GT
With:
-
Bowl diameters from 220 mm to 760 mm
-
Maximum G-force up to 3200 G
-
Processing capacity tailored to different sludge conditions
Project Value for Overseas Clients
For overseas environmental companies, GN centrifuge packages offer:
-
Reliable and continuous sludge dewatering
-
Reduced sludge disposal costs
-
Compliance with environmental regulations
-
Easy integration into existing treatment systems
-
Lower operation and maintenance cost
Conclusion
The successful shipment of this sludge dewatering centrifuge package highlights GN Separation’s strong capability in delivering high-performance and customized sludge treatment solutions to global clients.
The GN T Series dewatering decanter centrifuge, with its optimized 8.5° beach angle, robust construction, and intelligent control system, is an ideal choice for demanding sludge dewatering applications.
